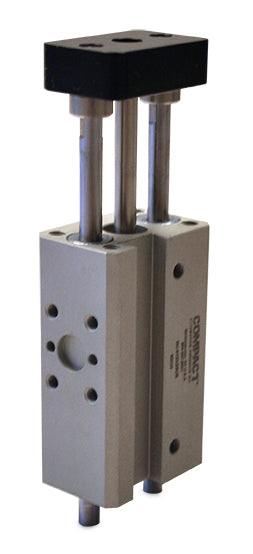

Guided Pneumatic Cylinder
Guided Pneumatic Cylinder
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
No se pudo cargar la disponibilidad de retiro
Share
GC2000 series guided cylinders outperform conventional non-rotating cylinders and is designed for short stroke, limited space applications where a cylinder is needed that guides and supports its own load. GC2000 series cylinders are designed for both torsion and direct side load.
Ver todos los detalles
GC3000 and 4000 series guided air cylinders are highly space efficient devices designed to bridge the gap between expensive ball bearing slides and zero load bearing non rotating cylinders.
GC 2000 Series
Features:
- Compact envelope
- Two external guide rods
- Oil impregnated guide bushings
- Two mounting surfaces and a large tooling plate
GC3000 Series
Features:
- GC3000 features two long guide bushings in the head end. The guide rods do not extend beyond the back of the cylinder body, thus providing a short overall length and low unit weight.
GC4000 Series
Features:
GC4000 features four long guide bushings, two per end. The guide rods extend beyond the back of the cylinder body so when the cylinder extends, four point support reduces deflection and extends the life under full loads.
