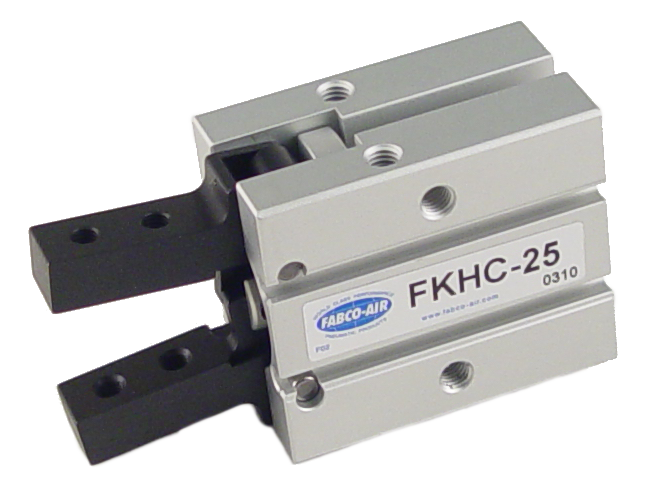

HIGH FORCE ANGULAR GRIPPERS - FKHC Series

The FKHC Series of angled grippers are lightweight and can provide a very high force. Ideal for applications that require movement in tight, confined spaces, the largest gripper in this series weighs only 11 ounces.

These grippers have a unique additional piston that provides extra force when pressure is applied, enhancing synchronization. Adjustable needle valves control the speed of jaw motion to best suit any number of applications.

FEATURES

• Operating pressure ranges from 30 psi to 87 psi.
• Operating media is compressed air.
• Opening: -10 to 30°
• Effective Gripping Force at 72 psi:
  • 10mm Bore: 1.1 lbf
  • 16mm Bore: 4.5 lbf
  • 20mm Bore: 8.3 lbf
  • 25mm Bore: 15.7 lbf

TECHNICAL ADVANTAGES

• Available in four bore sizes: 10, 16, 20 and 25 millimeters.
• Magnetic piston is standard.
• Standard adjustable needle valve to control open/close speed.
• Integrated sensor slots in the gripper body enable easy mounting of sensors for both “open” and “closed” position sensing.
• Aluminum gripper body is hard-coated to ensure abrasion and to combat corrosion.
• No additional lubrication is required.
