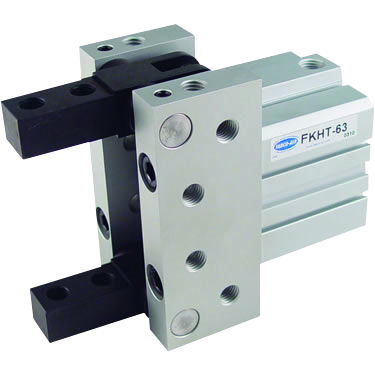

TOGGLE TYPE ANGULAR GRIPPER - FKHT Series

The FKHT Series features an extra measure of safety — a toggle mechanism that will securely hold the workload if the air pressure drops. With five tapped mounting holes, you have a high degree of installation freedom. Pair these grippers with 9C49-style sensors for surge suppression, polarity protection, LED indication and extremely fast switching speeds. This series does well in hazardous conditions and with heavy workpieces.

FEATURES

• Available in four bore sizes: 32, 40, 50 and 63 millimeters
• Operating pressure ranges: 15 to 100 psi
• Operating media: compressed air
• Opening: -2 to 28°
• Effective Gripping Force at 58 psi:
  • 32 mm bore: 22 lbf
  • 40 mm bore: 44 lbf
  • 50 mm bore: 67 lbf
  • 63 mm bore: 89 lbf



TECHNICAL ADVANTAGES

• Tapped mounting holes on four different surfaces
• Magnetic piston standard
• Integrated sensor slots in gripper body: easy sensor mounting for both “open” and “closed” position sensing
• Hard-coated aluminum gripper body: ensures abrasion, combats corrosion
• No additional lubrication required
