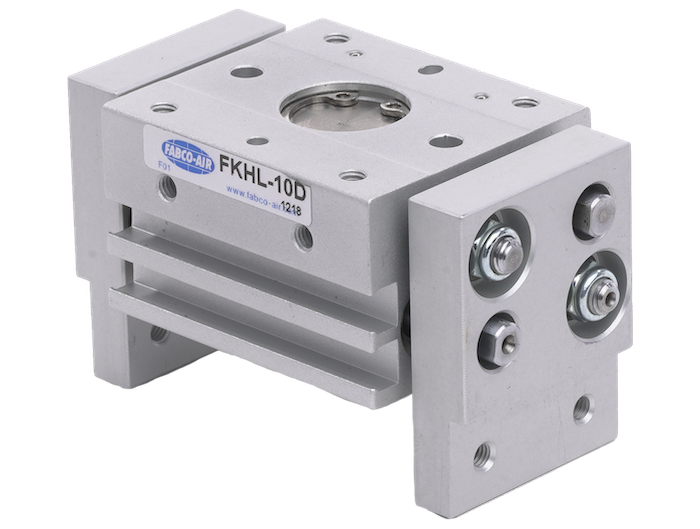

TWO-JAW WIDE PARALLEL GRIPPER - FKHL Series

With its wide-gripper design, the FKHL Series is well-suited to handle larger parts in high volume jobs. Designed with oil-impregnated sleeve bearings encased in steel, these grippers move smoothly with no need for additional lubrication. The series also includes a built-in rod scraper for easier dust control and maintenance. Our dual-piston mechanism creates a high grip force to make sure the load stays in place.

FEATURES

• Available in five bore sizes: 10, 16, 20, 25 and 32 millimeters
• Available in stroke sizes from 20 to 160 millimeters
• Operating pressure ranges: 15 to 87 psi
• Operating media: compressed air
• Repeatability: +/- 0.2 mm
• Effective Gripping Force at 72 psi:
  • 10 mm bore: 3.1 lbf
  • 16 mm bore: 10.1 lbf
  • 20 mm bore: 16.6 lbf
  • 25 mm bore: 29.4 lbf
  • 32 mm bore: 51.2 lbf

TECHNICAL ADVANTAGES

• Magnetic piston standard
• Standard rod scrapers for dust and debris protection
• Oil impregnated sleeve bearings encased in steel on all units
• Integrated sensor slots in gripper body: easy sensor mounting for both “open” and “closed” position sensing
• Hard-coated aluminum gripper body: ensures abrasion, combats corrosion
• No additional lubrication required
